Turbine aeroplane aerodynamics structure and systems -:airframe structure -general concept

STRUCTRUL CLASSIFICATION-
Aircraft structure is divided into three categories for
the purposes of assessing damage and the application of
repair protocol that are suitable for the structure under
consideration. Manufacturer manuals designate which
category a structure falls under and the technician
is required to repair and maintain that structure in
accordance with rules specified for the category under
which it falls. The three categories for structure are:

primary, secondary and tertiary.
Primary structure-Primary structure is any portion of the aircraft structure
that, if it fails, on the ground or in flight, would likely
cause any of the following:
• A loss of control of the aircraft.
• Catastrophic structural collapse.
• Injury to occupants.
• Power unit failure.
• Unintentional operation.
• Inability to operate a service.
Some examples of primary structure are wings spars,
engine mounts, fuselage frames, and main floor
structural members. Within the primary structure are
elements called principle structural elements (PSE's).
These elements are those which carry flight, ground
and pressurization loads.
Primary structure may also be represented as a structurally
significant item or SSL These elements are specified in a
supplemental structural inspection document. Due to
their structural importance, they may require special
inspection and have specific repair limitations.
Secondery structure-Secondary structure is all non primary structure portions
of the aircraft which have integral structural importance
and strength exceeding design requirements. These
structures weakening without risk of failure such as
those described for primary structure. Prominent
examples of secondary structure are wing ribs, fuselage
stringers and specified sections of the aircraft skin.
Tertiary structure-Tertiary structure is the remaining structure. Tertiary
structures are lightly stressed structures that are fitted to
the aircraft for various reasons. Fairings, fillets, various
support brackets, etc. are examples of tertiary structure.

DAMAGE OF TOLERANT-

Fail safe-Fail safe means the structure has been evaluated, usually
by the manufacturer, to assure that catastrophic failure is
not probable after fatigue failure or obvious partial failure
of a single, principal structural element. It is designed so
that the aircraft may continue to operate safely until the
defect is detected in a scheduled maintenance check.
Manufacturer testing and fatigue analysis is used when
developing fail safe structural elements. The elements
are considered damage tolerant.
Safe life-
Safe life structural elements are those which have a
very low risk of unacceptable degradation or failure for

a stated amount of time. The fatigue capability of thestructure is learned through testing. The stresses applied
while in service are designed to be significantly lower.
Also, the calculated time in service before failure is
greatly reduced so that failure of the structure before its
safe life is highly unlikely. The affects of corrosion, wear
and fatigue are considered when operating under the
safe life design principle.
Damage tolerance-Designing aircraft with fail safe principles can be
somewhat unreliable. Accidents have occurred that
prove this. Engineering improvements to a fail safe
structure typically come with the extra penalty of
adding weight. Thus, the damage tolerant concept of
engineering is favored.
By distributing loads over a larger area and designing
multiple load paths for carrying loads, a structure can be
damage tolerant. The structure retains its integrity and the
damage does not worsen in service between inspections
when the damage can be detected and repaired. Thus,
Damage tolerance means that the structure has been
evaluated to ensure that should serious fatigue, corrosion,
or accidental damage occur within the operational life
of the aeroplane, the remaining structure can withstand
reasonable loads without failure or excessive structural
deformation until the damage is detected.

STATION IDENTIFICATION AND ZONAL LOCATION SYSTEM-


Station numbering system-Even on small, light aircraft, a method of precisely
locating each structural component is required. Various
numbering systems are used to facilitate the location of
specific wing frames, fuselage bulkheads, or any other
structural members on an aircraft.
Most manufacturers use some system of station
marking. For example, the nose of the aircraft may
be designated "zero station," and all other stations are
located at measured distances in inches behind the zero
station. Thus, when a blueprint reads "fuselage frame
station 137," that particular frame station can be located
137 inches behind the nose of the aircraft.

To locate structures to the right or left of the center

line of an aircraft, a similar method is employed. Many

manufacturers consider the center line of the aircraft to bea zero station from which measurements can be taken to

the right or left to locate an airframe member. This is often

used on the horizontal stabilizer and wings. The applicable

manufacturer's numbering system and abbreviated

designations or symbols should always be reviewed before

attempting to locate a structural member. They are not

always the same. The following list includes location

designations typical of those used by many manufacturers.

• Fuselage stations (Fus. Sta. or FS) are numbered in

inches from a reference or zero point known as the

reference datum. The reference datum

is an imaginary vertical plane at or near the nose of

the aircraft from which all fore and aft distances are

measured. The distance to a given point is measured

in inches parallel to a center line extending through

the aircraft from the nose through the center of the

tail cone. Some manufacturers may call the fuselage

station a body station, abbreviated BS.

 Buttock line or butt line (BL) is a vertical reference
plane down the center of the aircraft from which
measurements left or right can be made.
Water line (WL) is the measurement of height
in inches perpendicular from a horizontal plane
usually located at the ground, cabin floor, or some
other easily referenced location.
Aileron station (AS) is measured outboard from,
and parallel to, the inboard edge of the aileron,
perpendicular to the rear beam of the wing.
Flap station (KS) is measured perpendicular to the
rear beam of the wing and parallel to, and outboard
from, the inboard edge of the flap.
Nacelle station (NC or Nae. Sta.) is measured either
forward of or behind the front spar of the wing and
perpendicular to a designated water line .

In addition to the location stations listed above, other

measurements are used, especially on large aircraft.

Thus, there may be horizontal stabilizer stations (HSS),

vertical stabilizer stations (VSS) or powerplant stations

(PPS)In every case, the manufacturer's

terminology and station location system should be

consulted before locating a point on a particular aircraft.

Zonal identification-Another method is used to facilitate the location of

aircraft components on air transport aircraft. This

involves dividing the aircraft into zones. Large areas

or major zones are further divided into sequentially

numbered zones and sub zones. The digits of the zone

number are reserved and indexed to indicate the location

and type of system of which the component is a part.

Access and inspection penal-Knowing where a particular structure or component

is located on an aircraft needs to be combined with

gaining access to that area to perform the required

inspections or maintenance. To facilitate this, access

and inspection panels are located on most surfaces of

the aircraft. Small panels that are hinged or removable

allow inspection and servicing. Large panels and doors

allow components to be removed and installed, as well

as human entry for maintenance purposes.

The underside of a wing, for example, sometimes

contains dozens of small panels through which control

cable components can be monitored and fittings

greased. Various drains and jack points may also be

on the underside of the wing. The upper surface of

the wings typically have fewer access panels because a

smooth surface promotes better laminar airflow, which

causes lift.On large aircraft, walkways are sometimes designated

on the wing upper surface to permit safe navigation

by mechanics and inspectors to critical structures and

components located along the wing's leading and trailing

edges. Wheel wells and special component bays are

places where numerous components and accessories are

grouped together for easy maintenance access.

Panels and doors on aircraft are numbered for positive

identification. On large aircraft, panels are usually

numbered sequentially containing zone and sub zone

information in the panel number. Designation for a leftor right side location on the aircraft is often indicated in

the panel number. This could be with an "L'' or "R," or

panels on one side of the aircraft could be odd numbered

and the other side even numbered.

The manufacturer's maintenance manual explains

the panel numbering system and often has numerous

diagrams and tables showing the location of various

components and under which panel they may be

found. Each manufacturer is entitled to develop its

own panel numbering system.

STRUCTRUL STRESS-

Aircraft structural members are designed to carry a

load or to resist stress. In designing an aircraft, every

square inch of wing and fuselage, every rib, spar, and

even each metal fitting must be considered in relation

to the physical characteristics of the material of whichit is made. Every part of the aircraft must be planned to

carry the load to be imposed upon it.

The determination of such loads is called stress analysis.

Although planning the design is not the function ofthe aircraft technician, it is, nevertheless, important

that the technician understand and appreciate the

stresses involved in order to avoid changes in the

original design through improper repairs.

The term "stress" is often used interchangeably with the

word "strain." While related, they are not the same thing.

External loads or forces cause stress. Stress is a material's

internal resistance, or counterforce, that opposes

deformation. The degree of deformation of a material is

strain. When a material is subjected to a load or force,

that material is deformed, regardless of how strong the

material is or how light the load is.

There are five major stresses to which all aircraft are

subjected: (Figure 2-6)

• Tension • Shear

• Compression • Bending

• Torsion

Tension is the stress that resists a force that tends to pull

something apart. (Figure 2-6A) The engine pulls the

aircraft forward, but air resistance tries to hold it back.

The result is tension, which stretches the aircraft. The

tensile strength of a material is measured in pounds per

square inch (psi) and is calculated by dividing the load

(in pounds) required to pull the material apart by its

cross sectional area (in square inches).

Compression is the stress that resists a crushing force.

(Figure 2-6B) The compressive strength of a material

is also measured in psi. Compression is the stress that

tends to shorten or squeeze aircraft parts.

Torsion is the stress that produces twisting. (Figure

2-6C) While moving the aircraft forward, the engine

also tends to twist it to one side, but other aircraft

components hold it on course. Thus, torsion is created.

The torsion strength of a material is its resistance to

twisting or torque.

Shear is the stress that resists the force tending to cause

one layer of a material to slide over an adjacent layer.

(Figure 2-6D) Two riveted plates in tension subject the

rivets to a shearing force. Usually, the shearing strength

of a material is either equal to or less than its tensile or

compressive strength. Aircraft parts, especially screws,

bolts, and rivets, are often subject to a shearing force.

Bending stress is a combination of compression and

tension. The rod in Figure 2-6E has been shortened

(compressed) on the inside of the bend and stretched on

the outside of the bend. A single member of the structure

may be subjected to a combination of stresses. In most

cases, the structural members are designed to carry end

loads rather than side loads. They are designed to be

subjected to tension or compression rather than bending.

Strength or resistance to the external loads imposed

during operation may be the principal requirement in

certain structures. However, there are numerous other

characteristics in addition to designing to control the

five major stresses that engineers must consider. For

example, cowling, fairings, and similar parts may not

be subject to significant loads requiring a high degree of

strength. However, these parts must have streamlined

shapes to meet aerodynamic requirements, such as

reducing drag or directing airflow.

Hoop stress-Hoop stress is the stress on the airframe structural

components caused by pressurization. All transport

category aircraft are pressurized. A circumferential

load is experience in hoop stress. The structural

fuselage framework resists this load with the aid of

the stressed skin.

Note that axial loads in the fuselage are also partial

resisted by the stressed skin construction as well

as the longitudinal structural members such as

longhorns and stringers.

 Metal fatigue-Metal fatigue is experienced by a component or

structural member when a load is repeatedly applied

and released or applied and reversed. This cycling

weakens the material over time even though the load

applied may be well below that which causes damage

in a single application.

All materials have an elastic limit. If applied loads do

not exceed this limit, the material should be unaffected

by the load and returns to its original state when

the load is removed. However, an aircraft in flight

constantly experiences varying loads. Over time,

these small load changes cause fatigue in the form of

minute cracks in the metal structure. Each tiny, seemlyinconsequential crack exposes new material to the

elements. This may weaken the material through corrosion.

Additionally, when a multitude of tiny fissures

combine, larger significant cracks may develop and

weaken the metal to the point of failure.

Aircraft structure is tested at the manufacturer to

determine a limit not to be exceeded for an aircraft in

service. Often, fatigue testing is accomplished on full

scale fatigue rigs which subject the elements to cycles

of loading and unloading or reversal well beyond that

which will be experienced in service by the aircraft.

A fatigue index is applied and the aircraft is monitor

throughout its service life. If its fatigue life limit is

consumed, an aircraft may be reevaluated to perceive its

actual condition. If the loading cycles and environmental

exposure of the structure was not as harsh as calculated,

it is possible to extend the service life of the aircraft. An

increased in inspection frequency and/or strengthening

modification(s) may be required to do so.

Fatigue characteristics vary with the type of metal

and how it is worked. The thickness of the material

and type and number of fastener hole can alter the

fatigue life. Aging aircraft are monitored and treated

by technicians to protect against corrosion which

accelerates metal fatigue

DRAINAGE AND VENTILATION PROVISIONS

DRAINAGE

The collection of water and other fluids in the many

cavities found on an aircraft can lead to corrosion and

could present a fire hazard. Drainage and ventilation

are used to address this issue. There are two types of

drains, internal and external.

External drains have openings to the exterior of the

aircraft. They are found on the wings, empennage and

fuselage as well as engine nacelles. An external drain

dumps the fluid overboard,. In unpressurized aircraft

the drains may remain open at all times. Drain valves

are used in pressurized sections of aircraft so that they

may remain sealed during pressurization. Typically

located along the aircraft keel, some external drains use

the pressurizing air to hold the valve closed. A rubber

flapper type valve, a plunger type valve or a normally

open spring loaded valve are closed by pressurization

air. When depressurized, such as when the aircraft is

on the ground, the drain valves open.

Leveling compound is sometimes used to build up a low

area near a drain valve to ensure that no fluid is trapped and

it flows out the drain orifice. This is typically a waterproof

rubber like sealant without structural characteristics.

Some fluids accrue during flight and need to be drained.

Galley and lavatory drain masts must be heated to

prevent ice formation and blockage caused by cold

temperatures at high altitude. A drain mast is nothing

more than an airfoil shaped projection designed to guide

the fluid overboard away from the skin of the aircraft.

Most have electric resistance heating elements or use hot

air from the pneumatic system to combat icing.

Internal drain paths are required to direct fluid to

the external drain sites. Tubes, channels, dams and

internal drain holes are all common. The design of

structural members often includes considerations that

prevent fluids from being trapped.

VENTILATION

Any cavity in the aircraft structure that may experience

the presence of a flammable vapor or water must

be ventilated to permit the vapor to evaporate. If

necessary, vent pipes are used provide an escape route

for the vapor. Some highly susceptible areas, such as

an engine nacelle, may even contain ram air inlets and

exit points to enable a full flow of fresh air through the

cavity. The technician should ensure that all openings

designed for ventilation are unobstructed.

SYSTEM INSTALLATION PROVISIONS

In addition to designing functioning support systems

for operation of the aircraft, design engineers must

also make the system components fit into the aircraft.Depending on the system and components, provisions

for access and servicing must also be addressed. Items

that receive regular maintenance such as filters, fluidlevel checks, bearing lubrication, etc. must be located so

that technicians can easily access them. Line replaceable

units (LRU's) must be able to be quickly uninstalled and

installed. Aircraft maintenance is a significant expense

for the operator. Anything that can be done to locate

system components for easy access for maintenance saves

time and lowers the cost of operating the aircraft.

Modern airliner designers often group the components

of a various systems in a single bay for easy access.

Air conditioning, for example, may have its several

key components mounted next to each other in an air

conditioning bay. The hydraulic reservoir, pumps and

filters may all be located in a different bay or in the

wheel well area. Avionics and electronics are frequently

mounted in an avionics bay. Not only are the "black

boxes" easily accessible but environmental conditions

can be better controlled than if the units were spread

throughout the aircraft.

CONSTRUCTION METHODS

FUSELAGE

The fuselage is the main structure or body of the fixed

wing aircraft. It provides space for cargo, controls,

accessories, passengers, and other equipment. In single

engine aircraft, the fuselage houses the powerplant. In

multi engine aircraft, the engines may be either in the

fuselage, attached to the fuselage, or suspended from

the wing structure. There are two general types of

fuselage construction: truss and monocoque.

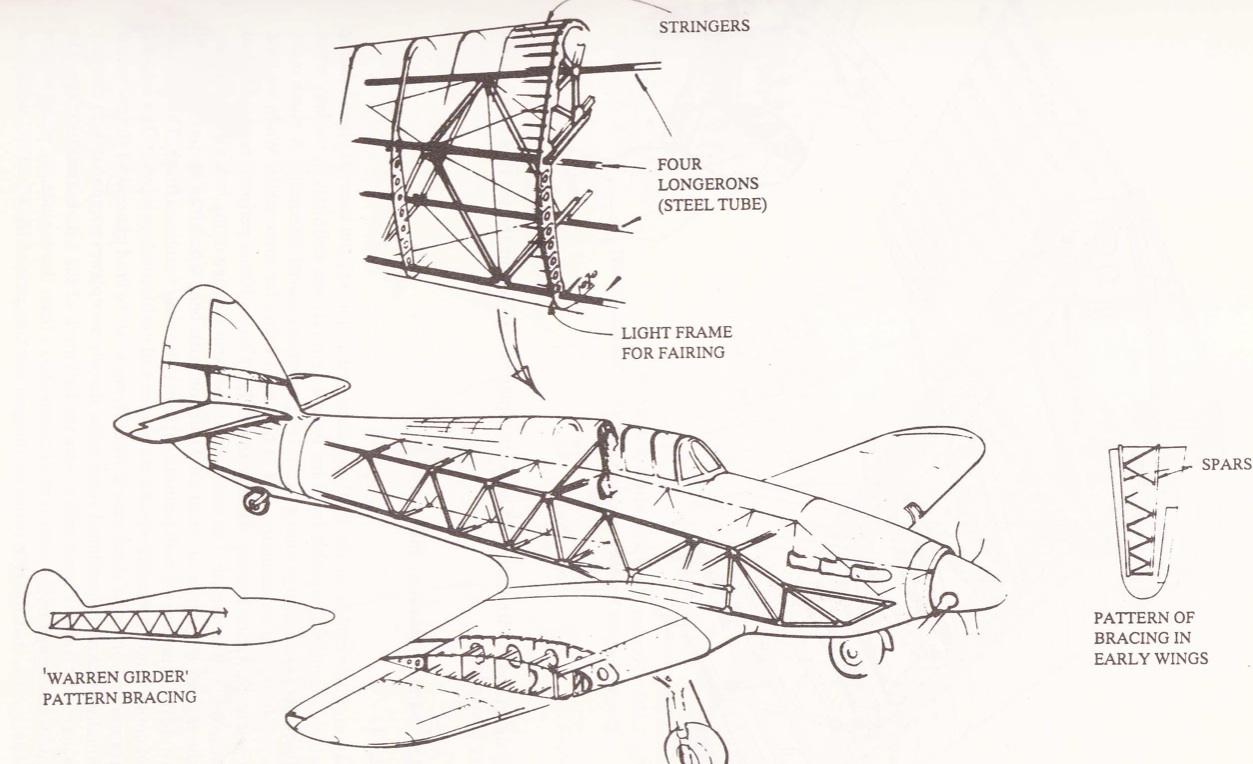

TRUSS TYPE

A truss is a rigid framework made up of members,

such as beams, struts, and bars to resist deformation

by applied loads. The truss framed fuselage is generally

covered with fabric. The truss type fuselage frame is

usually constructed of steel tubing welded together in

such a manner that all members of the truss can carry

both tension and compression loads. (Figure 2-9)

In some aircraft, principally the light, single engine models,

truss fuselage frames may be constructea.of aluminum

alloy and may be riveted or bolted into one piece, with cross

bracing achieved by using solid rods or tubes.

STRESSED SKIN FUSELAGE

MONOCOQUE TYPE

The monocoque (single shell) fuselage relies largely

on the strength of the skin or covering to carry the

primary loads. The design is called stressed skin and

may be divided into two classes:

1. Monocoque

2. Semimonocoque

Different portions of the same fuselage may belong to

either of the two classes, but most modern aircraft are

considered to be of semimonocoque type construction.

The true monocoque construction uses formers,

frame assemblies, and bulkheads to give shape to the

fuselage. (Figure 2-10) The heaviest of these structural

members, bulkheads, are partition type walls that

typically span the entire fuselage diameter often with

an opening for access through the partition. They are

located at intervals to carry concentrated loads and

at points where fittings are used to attach other units

such as wings, powerplants, and stabilizers. Since no

other bracing members are present, the skin must

carry the primary stresses and keep the fuselage rigid.

Thus, the biggest problem involved in monocoque

construction is maintaining enough strength while

keeping the weight within allowable limits.

SEMIMONOCOQUE TYPE

To overcome the strength/weight problem of monocoque

construction, a modification called semimonocoque

construction was developed. It also consists of frame

assemblies, bulkheads, and formers as used in the

monocoque design but, additionally, the skin is

reinforced by longitudinal members called longerons.

Longerons usually extend across several frame members

and help the skin support primary bending loads. They

are typically made of aluminum alloy either of a single

piece or a built up construction.

Stringers are also used in the semimonocoque fuselage.

These longitudinal members are typically more numerous

and lighter in weight than the longerons. They come in

a variety of shapes and are usually made from single

piece aluminum alloy extrusions or formed aluminum.

Stringers have some rigidity but are chiefly used for

giving shape and for attachment of the skin. Stringers

and longerons together prevent tension and compression

from bending the fuselage. (Figure 2-11)

Other bracing between the longerons and stringers can

also be used. Often referred to as web members, these

additional support pieces may be installed vertically

or diagonally. It must be noted that manufacturers use

different nomenclature to describe structural members.

For example, there is often little difference between

some rings, frames, and formers.

One manufacturer may call the same type of brace a ring

or a frame. Manufacturer instructions and specifications

for a specific aircraft are the best guides.

The semimonocoque fuselage is constructed primarily

of alloys of aluminum and magnesium, although steel

and titanium are sometimes found in areas of high

temperatures. Individually, no one of the aforementioned

components is strong enough to carry the loads imposed

during flight and landing. But, when combined, those

components form a strong, rigid framework. This is

accomplished with gussets, rivets, nuts and bolts, screws,

and even friction stir welding. A gusset is a type of

connection bracket that adds strength. (Figure 2-12)

To summarize, in semimonocoque fuselages, the strong,

heavy longerons hold the bulkheads and formers,

and these, in turn, hold the stringers, braces, web

members, etc. All are designed to be attached together

Module 11 A - Turbine Aeroplane Structures and Systems

and to the skin to achieve the full strength benefits of

semimonocoque design. It is important to recognize that

the metal skin or covering carries part of the load. The

fuselage skin thickness can vary with the load carried

and the stresses sustained at a particular location.

The advantages of the semimonocoque fuselage are

many. The bulkheads, frames, stringers, and longerons

facilitate the design and construction of a streamlined

fuselage that is both rigid and strong. Spreading loads

among these structures and the stressed skin means no

single piece is failure critical.

This means that a semimonocoque fuselage, because ofits

stressed skin construction, may withstand considerable

damage and still be strong enough to hold together.

BEAMS FLOOR STRUCTURES

In addition to the structural members already mentioned,

additional beams, floor structural members and

various other reinforcement members are also used to

construct an aircraft. A beam may be installed laterally

or longitudinally. Beams typically support the floor of

the flight deck and the passenger compartment. They

are situated to provide secure attachment of the floor

panels and also the seats tracks into which the passenger

seats are secured. The floor itself is typically made up

of numerous honeycomb constructed panels that are

screwed to the floor support structure. Flight deck floor

panels may be constructed from sheet metal.

STRUTS AND TIES

Struts and ties are also used in aircraft structure. A strut

is a bar or rod shaped reinforcement designed to resist

compression loads. A tie is a rod or beam designed to

take a tensile load. Both are used as needed to reinforce

the aircraft structure throughout the fuselage to carry

the loads experienced.

METHODS OF SKINNING

Attached to the outside of the aircraft structure is the

aircraft skin, be it stressed or not. Simple, light aircraft

generally have skin made from sheet aluminum which

is formed to fit, wrapped and riveted to the structural

members. Larger, more complex and heavier aircraft

used heavier material to form the aircraft skin. This

is to transfer and carry the greater loads experience

during high performance flight. Some simple sheet

metal skin may be found. However, various skin

thickness are used to meet the design loads which vary

by location around the aircraft.

Since in many areas the skin thickness varies,

machining the skin, including integrally formed

stringers and risers, from a solid billet of material

has become a standard practice. By milling the skin

out of a single piece of material, the skin thickness

may be varied precisely to meet design requirements.

Maximum strength is achieved with minimum weight

and no excess. (Figure2-13)

Another process used in skinning a large aircraft is

chemical etching. Etching of thicker skin material to

form thinner material with supporting raised patterns

of material are produced without any stress. Skin with a

"waffle plate" pattern is produced this way.

DOUBLERS

A simpler way to reinforce an area of skin on the aircraft

which receives greater loads than can easily be carried

by a single sheet of material is to create a doubler for

that area. A doubler is simply a second, reinforcing

layer of skin material used to strengthening the load

caring capacity of the skin. It has the advantage of being

inexpensive and is able to be shaped for a specific area

identified as needing reinforcement. Doublers are also

used in sheet metal repair work.

WING, EMPENNAGE AND ENGINE ATTACHMENT

The wings, empennage and engines must be attached

to the fuselage. The type of attachment varies with the

aircraft design. Typically, special pins or bolts are used.

Wings and empennage structure is often constructed

with load carrying main members called spars. Attach

lugs securely fitted to these spars mate with lugs that

are fitted to strengthened sections of the fuselage and

mounting pins or bolts are passed through both lugs

and secured. Figure 2-14 shows the internal fuselage

structure of what is considered the center section of the

horizontal stabilizer on a Boeing 737. Its lugs are mated

with the lugs on the horizontal stabilizer front spar (each

side, top and bottom) and attached with bolts.

Various wing and empennage attach methods exist

including a single piece structure that passes through

the fuselage making it basically non removable.

Configurations where numerous smaller bolts and

permanent fasteners are used to attach wings and

empennage airfoils are also common. Strength and

spreading the load throughout the fuselage attach

structure is achieved with any of these methods.

Engine attachments vary widely on aircraft depending on

where the engines are located and the size and design of

the aircraft and engine. A typical arrangement found on

transport aircraft is to extend support structure forward

and down from the wing spars. The structure is called

a pylon. Figure 2-15 is a rough cutaway drawing of a

turbofan engine pylon. It is built to be very strong to

support the engine. Attached to the pylon structure are

engine mounts to which the engine is bolted or visa versa.

The engine mounts on most turbofan engines, for

example, perform the basic functions of supporting

Genter Section

Clevis Lugs

the engine and transmitting the loads imposed by

the engine to the pylon and aircraft structure. Most

turbine engine mounts are made of stainless steel, and

are typically located as illustrated in Figure 2-16. Some

engine mounting systems use two mounts to support

the forward end of the engine and a single mount at the

rear end. The mounting arrangement depends on the

position of the engine and the pylon structure. Figure

2-17 illustrates the pylon and the side engine mount

configuration for a rear engine aircraft.

STRUCTURE ASSEMBLY TECHNIQUES

The structures of the majority of today's aircraft are

primarily aluminum. However, advances in the used

of composite materials such as glass and carbon fiber

is steadily increasing. A myriad of fasteners are used

to join together aluminum structural elements.

Most common are rivets, bolts and nuts and a

wide variety of special application fasteners. A full

discussion of aircraft materials and hardware is found

in Module 06 - Materials and Hardware of this series.As early "rag and tube" aircraft construction was

replaced by aluminum construction, assembly using

rivets dominated assembly techniques. Light and heavy

aircraft today still use the rivet as a primary fastener on

structural and non structural elements. But as aircraft

design evolved, larger and heavier aircraft were produced.

Structural members increased in size and complexity.

Rivets were not always suitable to assemble the new

structure. Stronger fasteners, some designed specifically

for use in aircraft assembly, were introduced.

Bolts are used in many locations on aluminum aircraft

when fastening large structural members and when

attaching both fixed and moveable components.

Special bolts such as Hi-loks, Jo-bolts and lock-bolts

are common as are clevis bolts where hi shear loads

are present. Close tolerance bolts are used where a

tight drive fit is required.

Special fasteners called blind fasteners are used in areas

where access to only one side of an assembly is possible.

Module 11 A - Turbine Aeroplane Structures and Systems

A variety of blind fasteners are used including several

classified as rivets. Structural sections and components

of the aeroplane that are made from composite material

may be assembled and attached in a variety of ways.

Sleeves and fitting incorporated during construction of a

panel, for example, facilitate the use of bolts.

Other fasteners may be specified depending on the

design and location of the structure. The panel itself is

constructed using methods described in Module 06

Materials and Hardware of this series. It is of the utmost

importance to follow manufacturer's instructions when

assembling composite structures. Many components

are bonded or require special fasteners with specific

torque considerations. Note also that some metal

structural members are bonded. Epoxy sheet bonding

using autoclave curing is sometimes used to bond metal

components resulting in extremely high strength joinery.

Large aircraft maintenance manuals contain specific

instruction for the bonding of all materials and sections

of the aircraft. ATA section 51 gives a descriptive

overview of the aircraft structure and general rules

followed in construction of airframe components

.

and sections. The manufacturer's structural repair

manual (SRM) details numerous repair procedures

and techniques for all aircraft structure repair. A large

aircraft fuselage is manufactured in sections that are

then mated and fastened together.

The structural sections of a Boeing 737 are shown in

Figure 2-18. Sections 41, 43, and 48 comprised the

pressurized portion of the fuselage. Section 48 is not

pressurized but does supply the support structure for

the vertical and horizontal stabilizer. It also contains

a bay for installation of the auxiliary power unit. A

rear pressure bulkhead separates body section 46

from body section 48.

ANTI-CORROSION PROTECTION

Preventing the corrosion of aircraft structures is

a consideration when materials are selected for its

construction. Suitable anti-corrosion measures are then

taken before and during construction. These range from

heat treatment of the material to a variety of surface

treatments to design and assembly techniques all

designed to prevent corrosion.

Heat treatment of a metal can refine its grain structure so

that it has the properties required for a specific function

while reducing its susceptibility to corrosion. Surface

treatments can protect metals from contaminants and

moisture which cause corrosion. Plating and cladding of

materials are common methods of corrosion protection.

When these are designed to degrade rather than having

the material they cover degrade, they are known as

sacrificial coatings. Common surface treatments such as

paints and primers are used as well as metal specific thin

surface treatments such as anodizing and chromating.

Numerous similar surface treatments have been

developed for specific metals in specific applications all

of which endeavor to keep the causes of corrosion at bay.

The design of an aircraft part or assembly can be very

instrumental in preventing corrosion. Something as

simple as a well designed drain path or a drain hole

placed in a strategic location can prevent corrosion of

material in a vulnerable area. Wet assembly techniques

and the use of sealants also provide a barrier to

corrosion causing agents.

Module 11A-Turbine Aeroplane Structures and Systems

Manufacturers use all techniques at their disposal to

produce a corrosion resistant aircraft. However, varied

aircraft operating environments and maintenance

practices combine with service loads sustained during

operation make corrosion inevitable. Processing of

susceptibility data obtained from field operations is used

with a wide variety of inspection and testing techniques

to find and correct corrosion before it reaches a critical

phase. Anti-corrosion treatments and repairs are

detailed throughout the manufacturer's maintenance

manuals, especially in ATA chapter 51, Structures.

Rarely does corrosion occur on a clean, dry aircraft

properly treated by the manufacturer during

construction. While in service, it is impossible to avoid

exposure of the aircraft to the elements. The agents of

corrosion, namely dirt and moisture, are encountered. A

program of keeping aircraft clean and diligence to keep

the condition of surface treatments in good condition

are main combatants for operators when preventing

corrosion. Technicians must assist by wiping up spills

and removing deposits that contribute to the corrosive

environment. Scratches, dents, and scoring should be

avoided while performing maintenance. Drain holes

must not be plugged so they can function as designed.

METHODS OF SURFACE

PROTECTION

The manufacturer's maintenance manual details the

surface protection compounds that must be applied by the

technician for all of the various areas of the aircraft. Again,

ATA Chapter 51 in the maintenance manual and the SRM

should be consulted. Different areas on the aircraft may

be prone to different contaminants and the recommended

treatments are designed accordingly. Do not assume that a

product is suitable for treatment of an area of the aircraft

structure without consulting the manufacturer's data.

ANODIZING

Manufacturers use a variety of methods of surface

protection on structural metals and hardware. One

of the most common for aluminum based alloys is

anodizing. Anodizing is an electrolytic treatment that

coats the metal with a hard, waterproof and airtight,

oxide film. Anodizing usually contains a dye. Various

colors are used. This permits easy identification that a

part has be anodized. The oxide film acts as an isolator.

When attaching a bonding lead, the film must carefully

be removed to ensure electrical conductivity.

Anodizing provides an excellent base for many finishes

as well as for bonding adhesives. Acrylic lacquers, and

polyurethane paints adhere well to anodized parts and

provide good resistance to chemical attack and wear.

CHROMATING

An alternative to anodizing used for surface protection

on magnesium and zinc alloy parts is chromate.

When chromated, parts are generally immersed in a

potassium bichromate solution. The chromate coating

protects the surface from corrosive elements and has a

yellowish appearance on magnesium alloys. Products

are available to obtain a chromate coating on a part in

the field. Alocrom 1200 is one such product.

CLADDING

Cladding a material with another, non corrosive material

is a popular means of material surface protection. This

is done as the raw material is formed into the product

material. Sheet aluminum, for example, may be clad to

protect the corrosive copper or zinc aluminum alloy from

which many aluminums products are made. Alclad is a

process of cladding aluminum in which a pure aluminum

skin is rolled onto the face of an alloy aluminum sheet.

Pure aluminum forms a stable aluminum oxide surface

2.18 AIRCRAFT - TECH N ICAL

Boo k Comp any

when exposed to air that protects the pure aluminum

itself and the material that has been clad.

PAINTING

Many aircraft structural elements and parts are painted

to protect them from corrosion. The paint acts as a

barrier so that the agents of corrosion cannot reach the

material being protected. To be effective, paint must be

applied to a clean dry surface. It must be compatible

with the material composition so that a good bond

is formed and it adheres when it is applied. Material

surface treatments such as paint primer and alodine are

used before painting because they bond strongly to the

base material as well as to the paint.

SURFACE CLEANING

Nearly all surface treatments to aircraft metals

begin with a thorough cleaning of the material.

This may include stripping of old paint before new

paint or primer is applied. Strippers are specifically

recommended by the manufacturer that do not react

with the base metal of the structure. Therefore, only

use strippers that are recommended.

A cleaned surface is often treated with alodine before

a primer or painted coating is applied. Clad aluminum

parts use a different formula of alodine than non clad

alloys. Be sure to use the correct formula.

Personal safety procedures should be followed when

cleaning, stripping and applying any surface treatment.

Solvents, strippers, cleaners, etchants and conversion

coatings can all be hazardous to the health of the

technician. Avoid breathing vapors from products

of this type and avoid prolonged skin contact. Use

protective gloves, goggles, respirators and other

protective gear. Know the location of the nearest

eyewash fountain when working with these substances.

Flush eyes with water if one splashes into the eyes and

get medical attention immediately. Generally, specified

paint strippers are used on metal surfaces only. Protect

all surrounding areas from accidental contact with the

stripper. Polyethelene film and suitable adhesive tape is

used for masking.

In particular, Teflon lines, self lubricated bearings,

electrical terminal plugs, nylon coated wires and

nylon bushings should be protected from contact

with chemicals used in strippers. Plastics, laminates,

composites, fiberglass and bonded structures usually

have paint removed by abrasive cleaning. Do not use

stripper on composite structures. Use only the methods

described by the manufacturer.

EXTERIOR AIRCRAFT CLEANING

Aircraft are cleaned before major inspections. Typically

a high pressure water or steam is sprayed in conjunction

with cleaning agents to clean the exterior of the aircraft.

While a clean aircraft aids in corrosion prevention, the

cleaning process may put water and agent where it is not

desirable and, thus, it may even cause corrosion. Areas

into which the cleaning spray should not enter must be

Module 11 A - Turbine Aeroplane Structures and Systems

covered or sealed from its entrance. Pitot tubes and static

ports are such areas as well as tires and brake assemblies.

The manufacturer's maintenance manual gives detailed

instructions on cleaning procedures. Areas to be

protected and the proper cleaning agents to use must

be noted. A cleaning agent that is suitable for one

area of the aircraft may not be for another. Follow all

manufacturer instructions when cleaning.

Aircraft are generally washed outside in an area with

adequate and environmentally responsible drainage.

Washing with cleaning agents should not be performed in

high temperatures where the agent may dry before being

rinsed off. In certain locations, this may relegate washing

to inside of a hangar. Use the ratio of agent to water that

is recommended. Use of the wrong agent may cause the

agent to attack materials. Hydrogen embrittlement occurs

when certain agents soak into an aircraft metal. Minute

cracks form and stress corrosion develops.

ALIGNMENT AND SYMMETRY

The position or angle of the main structural components

is related to a longitudinal datum line parallel to the

aircraft center line and a lateral datum line parallel to a

line joining the wing tips. Before checking the position

or angle of the main components, the aircraft must be

jacked and leveled.

Small aircraft usually have fixed pegs or blocks attached

to the fuselage parallel to or coincident with the datum

lines. A spirit level and a straight edge are rested across

the pegs or blocks to check the level of the aircraft.

This method of checking aircraft level also applies to

many of the larger types of aircraft. However, the grid

method is sometimes used on large aircraft. The grid

Special Dihedral Board with

Spirit Level Incorporated

Engine and wheel well areas may require a special

washing technique or cleaning agents due to dirt,

oil, grease and exhaust debris buildup. Again, follow

manufacturer's instructions. Be aware that some

cleaning procedures are followed by greasing various

locations that may have had grease washed out during

the cleaning process.

plate is a permanent fixture installed on the aircraft

floor or supporting structure. (Figure 2-19)

When the aircraft is to be leveled, a plumb bob is

suspended from a predetermined position in the ceiling

of the aircraft over the grid plate. The adjustments to the

jacks necessary to level the aircraft are indicated on the

grid scale. The aircraft is level when the plumb bob is

suspended over the center point of the grid.

Certain precautions must be observed in all instances

when jacking an aircraft. Normally, rigging and

alignment checks should be performed in an

enclosed hangar.

If this cannot be accomplished, the aircraft should be

positioned with the nose into the wind.

The weight and loading of the aircraft should be exactly

as described in the manufacturer's manual. In all cases,

the aircraft should not be jacked until it is determined

that the maximum jacking weight (if applicable)

specified by the manufacturer is not exceeded.

With a few exceptions, the dihedral and incidence angles

of conventional modern aircraft cannot be adjusted.

Some manufacturers permit adjusting the wing angle

of incidence to correct for a wing heavy condition. The

dihedral and incidence angles should be checked after

hard landings or after experiencing abnormal flight

loads to ensure that the components are not distorted

and that the angles are within the specified limits.

There are several methods for checking structural

alignment and rigging angles. Special rigging boards

that incorporate, or on which can be placed, a special

instrument (spirit level or inclinometer) for determining

the angle are used on some aircraft. On a number of

aircraft, the alignment is checked using a transit and

plumb bobs or a theodolite and sighting rods. The

particular equipment to use is usually specified in the

manufacturer's maintenance manual.

When checking alignment, a suitable sequence should

be developed and followed to be certain that the checks

are made at all the positions specified. The alignment

checks specified usually include:

• Wing dihedral angle

• Wing incidence angle

• Verticality of the fin

• Engine alignment

• A symmetry check

• Horizontal stabilizer incidence

• Horizontal stabilizer dihedral

CHECKING DIHEDRAL

The dihedral angle should be checked in the specified

positions using the special boards provided by the aircraft

manufacturer. If no such boards are available, a straight

edge and a inclinometer can be used. The methods for

checking dihedral are shown in Figure 2-20.

It is important that the dihedral be checked at the

positions specified by the manufacturer. Certain

portions of the wings or horizontal stabilizer may

sometimes be horizontal or, on rare occasions,

anhedral angles may be present.

CHECKING INCIDENCE

Incidence is usually checked in at least two specified

positions on the surface of the wing to ensure that the

wing is free from twist. A variety ofincidence boards are

used to check the incidence angle. Some have stops at

the forward edge, which must be placed in contact with

the leading edge of the wing. Others are equipped with

location pegs which fit into some specified part of the

structure. The purpose in either case is to ensure that the

board is fitted in exactly the position intended. In most

instances, the boards are kept clear of the wing contour

by short extensions attached to the board. A typical

incidence board is shown in Figure 2-21.

When used, the board is placed at the specified

locations on the surface being checked. If the incidence angle is correct, a inclinometer on top of the board

reads zero, or within a specified tolerance of zero.

Modifications to the areas where incidence boards are

located can affect the reading. For example, if leading

edge de-icer boots have been installed, the position of a

board having a leading edge stop is affected.

CHECKING FIN VERTICALITY

After the rigging of the horizontal stabilizer has been

checked, the verticality of the vertical stabilizer relative

to the lateral datum can be checked. The measurements

are taken from a given point on either side of the top of

the fin to a given point on the left and right horizontal

stabilizers. (Figure 2-22) The measurements should be

similar within prescribed limits.

When it is necessary to check the alignment of the

rudder hinges, remove the rudder and pass a plumb bob

line through the rudder hinge attachment holes. The

line should pass centrally through all the holes. It should

be noted that some aircraft have the leading edge of

the vertical fin offset to the longitudinal center line to

counteract engine torque.

CHECKING ENGINE ALIGNMENT

Engines are usually mounted with the thrust line parallel

to the horizontal longitudinal plane of symmetry.

However, this is not always true when the engines are

mounted on the wings. Checking to ensure that the

position of the engines, including any degree of offset

is correct, depends largely on the type of mounting.

Generally, the check entails a measurement from

the center line of the mounting to the longitudinal

center line of the fuselage at the point specified in the

applicable manual. (Figure 2-23)

2.22 AIRCRAFT - TCCHNICAL

Doak C omp;111y

SYMMETRY CHECK

The principle of a typical symmetry check is illustrated

in Figure 2-23. The precise figures, tolerances, and

checkpoints for a particular aircraft are found in

the applicable service or maintenance manual. On

small aircraft, the measurements between points are

usually taken using a steel tape. When measuring long

distances, it is suggested that a spring scale be used

with the tape to obtain equal tension. A five pound pull

is usually sufficient.

On large aircraft, the positions at which the dimensions

are to be taken are usually chalked on the floor. This is

done by suspending a plumb bob from the checkpoints

and marking the floor immediately under the point

of each plumb bob. The measurements are then taken

between the centers of each marking.
